Description
1/3″ progressive scan CMOS sensorius, iki 2.0 Mpx raiška, 2.8mm objektyvas, iki 30 m IR apšvietimas, dvigubas srautas, skaitmeninis WDR, 3D DNR, PoE, IP67, IK10

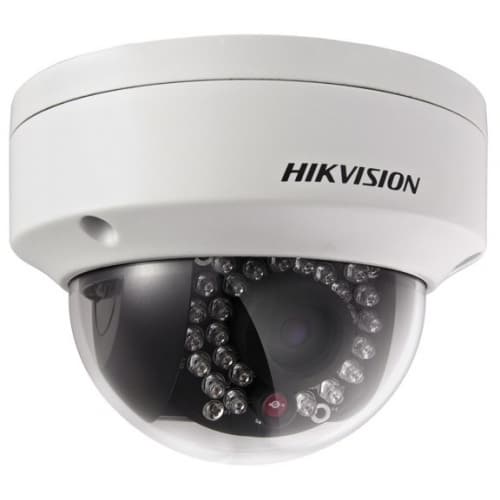

Hikvision DS-2CD1121-I F2.8
| Camera | |
| Image Sensor | 1/2.8″ progressive scan CMOS |
| Min. Illumination | Color: 0.01Lux @(F1.2,AGC ON),0 Lux with IR |
| Shutter Speed | 1/3s to 1/100,000 s, supportslow shutter |
| Lens | 2.8 mm @F2.0, horizontal field of view 105°, 4 mm @F2.2, horizontal field of view 84° 6 mm @F2.0, horizontal field of view 55° |
| Lens Mount | M12 |
| Day &Night | IR cut filter with auto switch |
| 2-Axis Adjustment | Pan: 0° to 355°, tilt: 0°to 70° |
| DNR(Digital Noise Reduction) | 3D DNR |
| WDR(Wide Dynamic Range) | Digital WDR |
| Compression Standard | |
| Video Compression | Main stream: H.264+/H.264 Sub stream: H.264/MJPEG |
| H.264 Type | Baseline profile/Main profile |
| Video Bit Rate | 32 Kbps to8 Mbps |
| Image | |
| Max. Resolution | 1920 × 1080 |
| Main Stream Max. Frame Rate | 50Hz: 25fps @(1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps @(1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub-stream Max. Frame Rate | 50Hz: 25fps @(704 × 576, 640 × 480, 352 × 288,320 × 240)
60Hz: 30fps @(704 ×480, 640 × 480, 352 × 240,320 × 240) |
| Image Settings | Brightness, saturation, contrast, sharpness are adjustable via web browser or client software |
| Day/Night Switch | Support auto, scheduled |
| Others | Mirror, BLC (area configurable), region of interest (support 1 fixed region) |
| Network | |
| Network Storage | NAS (NFS,SMB/CIFS) |
| Detections | Motion detection |
| Alarms | Video tampering, network disconnected, IP address conflicted |
| Protocols | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, NTP,UPnP,SMTP,IGMP,802.1X,QoS,IPv6, Bonjour |
| Standard | ONVIF(PROFILE S,PROFILE G),PSIA,CGI,ISAPI |
| General Function | One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
| Interface | |
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Reset | Support |
| General | |
| Operating Conditions | -30 °C to60 °C (-22 °F to140 °F), humidity: 95% or less (non-condensing) |
| Power Supply | 12V DC± 25%, PoE (802.3af) |
| Power Consumption | Max. 5 W |
| Protection Level | IP67, IK10 |
| IR Range | Up to 30 m |
| Dimensions | Φ111 mm × 82 mm (4.4″ × 3.2″) |
| Weight | 500 g (1.1 lb.) |
